Q96C3L

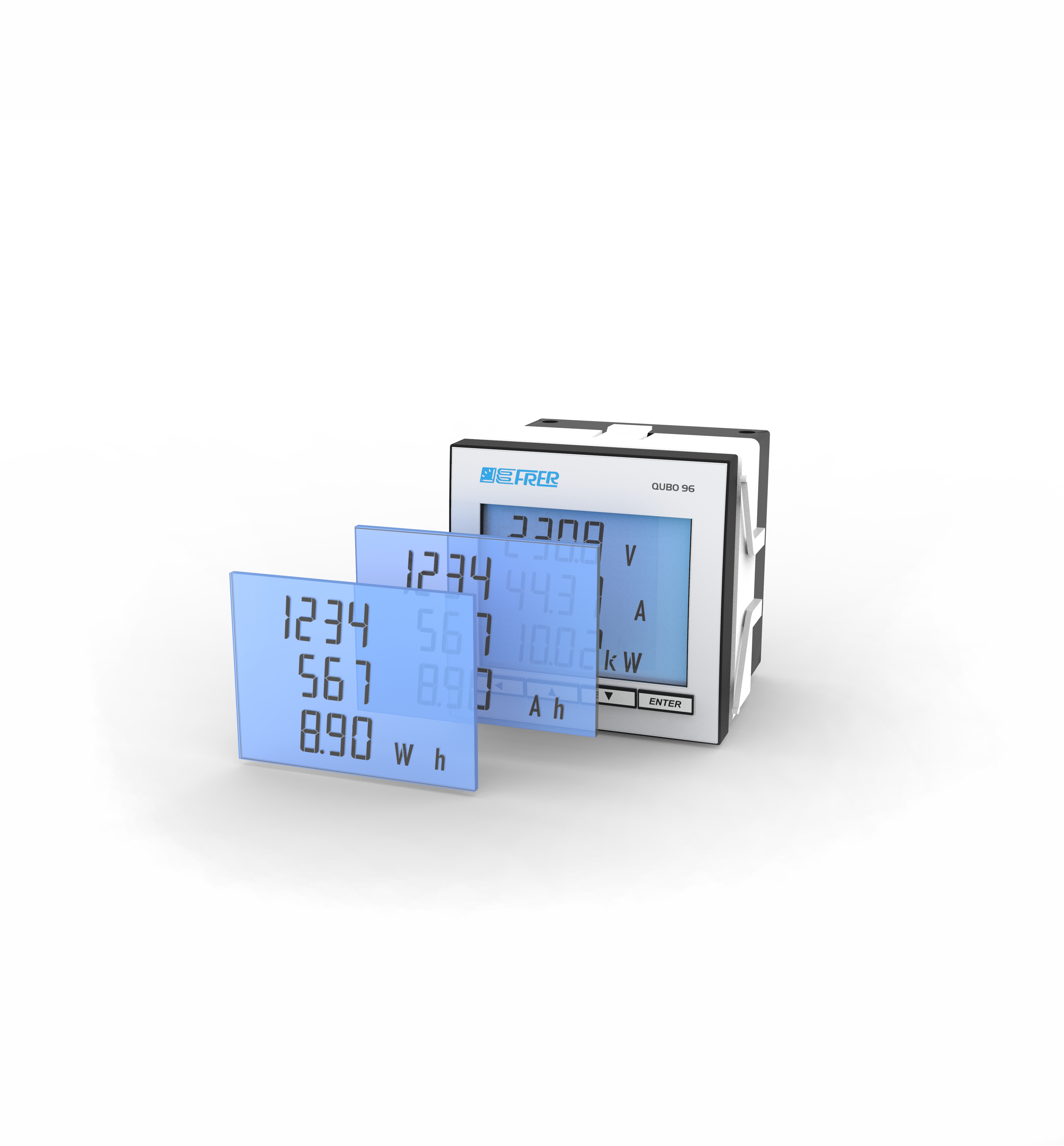

96x96mm DC Multifunction network analyser

Multifunction analyser for use in DC systems.

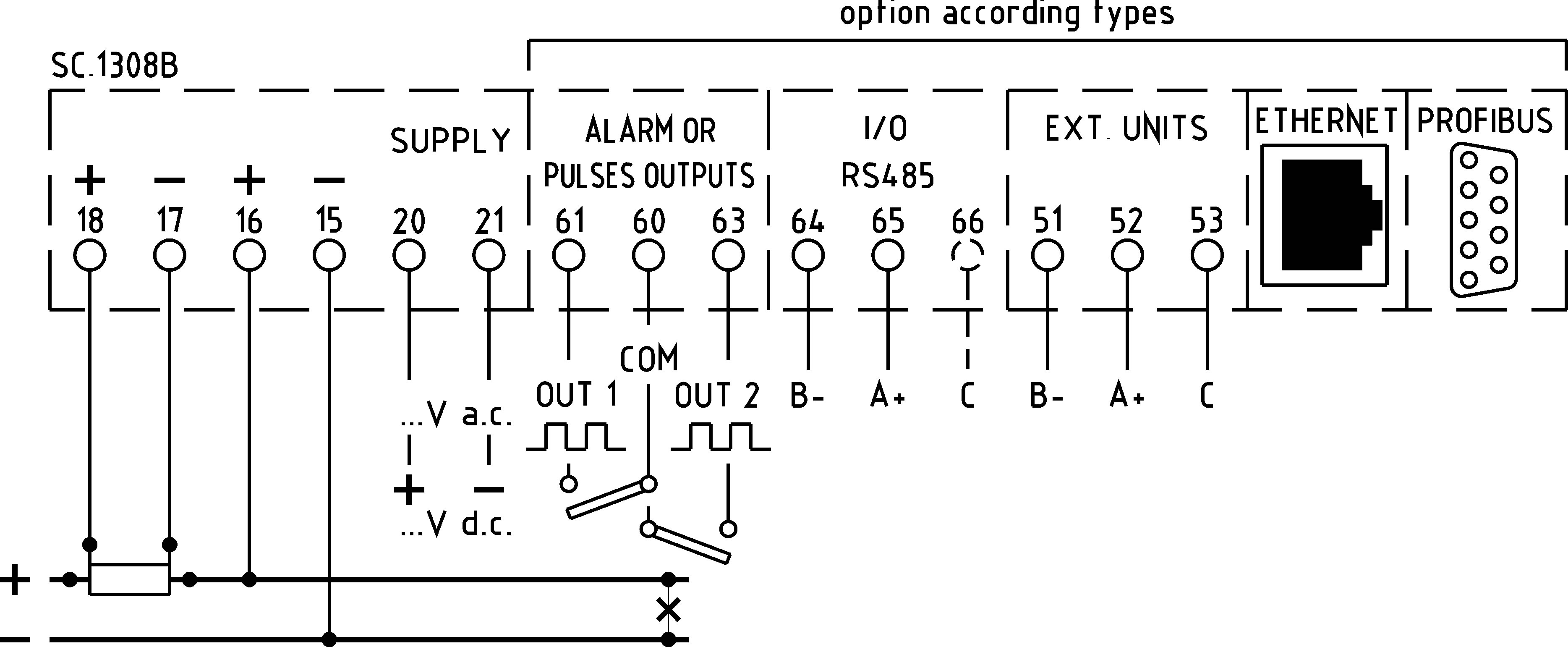

The voltage input is directly connected to the line, while the proportional current input is derived from shunts. The primary current value can be set via a simple programming menu. It has the main quantities of a DC power grid, including bi-directional energy counting and Ah, and an additional set of "advanced" measurements that allow more efficient monitoring or provide additional indications of the operating status of the system. As an option, it can be equipped with a communication interface (Modbus RTU - Ethernet - IEC61850 - PROFIBUS), 2 alarm outputs that can alternatively be programmed as pulse outputs for energy and Ah retransmission, or connection with Analog Output modules.
